Ocean Containers & ULDs
Specifications
| SPECS |
Inside Length |
Inside Width |
Inside Height |
Door
Width |
Door
Height |
Cubic
Capacity |
Tare
Weight |
Maximum Payload |
|
STANDARD CONTAINERS |
| 20' Standard |
19'4" |
7'8" |
7'10" |
7'8" |
7'6" |
1,172 cft |
4,916 lbs |
47,900 lbs |
| 5.900 m |
2.350 m |
2.393 m |
2.342 m |
2.280 m |
33.2 cbm |
2,230 kg |
21,770 kg |
| 40' Standard |
39'5" |
7'8" |
7'10" |
7'8" |
7'6" |
2,390 cft |
8,160 lbs |
59,040 lbs |
| 12.036 m |
2.350 m |
2.392 m |
2.340 m |
2.280 m |
67.7 cbm |
3,700 kg |
26,780 kg |
| 40' H.C.(High Cube) |
39'5" |
7'8" |
8'10" |
7'8" |
8'5" |
2,694 cft |
8,750 lbs |
58,450 lbs |
| 12.036 m |
2.350 m |
2.697 m |
2.338 m |
2.585 m |
76.3 cbm |
3,970 kg |
26,510 kg |
|
OPEN TOP CONTAINERS |
| 20' Open Top |
19'4" |
7'7" |
7'8" |
7'6" |
7'2" |
1,136 cft |
5,280 lbs |
47,620 lbs |
| 5.894 m |
2.311 m |
2.354 m |
2.286 m |
2.184 m |
32.2 cbm |
2,400 kg |
21,600 kg |
| 40'Open Top |
39'5" |
7'8" |
7'8" |
7'8" |
7'5" |
2,350 cft |
8,490 lbs |
58,710 lbs |
| 12.038 m |
2.350 m |
2.345 m |
2.341 m |
2.274 m |
65.5 cbm |
3,850 kg |
26,630 kg |
|
REEFER CONTAINERS |
| 20' Reefer |
17'8" |
7'5" |
7'5" |
7'5" |
7'3" |
1,000 cft |
7,040 lbs |
45,760 lbs |
| 5.425 m |
2.275 m |
2.260 m |
2.258 m |
2.216 m |
28.3 cbm |
3,200 kg |
20,800 kg |
| 40' Reefer |
37'8" |
7'5" |
7'2" |
7'5" |
7'0" |
2,040 cft |
10,780 lbs |
56,276 lbs |
| 11.493 m |
2.270 m |
2.197 m |
2.282 m |
2.155 m |
57.8 cbm |
4,900 kg |
25,580 kg |
| 40' H.C.Reefer |
37'11" |
7'6" |
8'2" |
7'6" |
8'0" |
2,344 cft |
9,900 lbs |
57,561 lbs |
| 11.557 m |
2.294 m |
2.500 m |
2.294 m |
2.440 m |
66.6 cbm |
4,500 kg |
25,980 kg |
|
FLAT RACK CONTAINERS |
| 20' Flat Rack |
18'5" |
7'3" |
7'4" |
- |
- |
- |
5,578 lbs |
47,333 lbs |
| 5.620 m |
2.200 m |
2.233 m |
- |
- |
- |
2,530 kg |
21,470 kg |
| 40' Flat Rack |
39'7" |
6'10" |
6'5" |
- |
- |
- |
12,081 lbs |
85,800 lbs |
| 12.080 m |
2.438 m |
2.103 m |
- |
- |
- |
5,800 kg |
39,000 kg |
| Unit Load Device's |
|
|

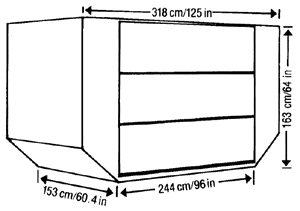

| ID Code |
P6P, PMC (Lower Deck) |
| U.S. Domestic Code |
|
| Aircraft types and Main or Lower
deck |
All 747's & 767*, A330 Lower
Deck |
| Rate Class |
2BG |
| Internal Volume |
|
| Limiting Internal
Dimensions |
|
| Maximum Gross Weight |
5035kg (11100lb) |
| Tare Weight (incl. net) |
110kg (242lb) |
| * Advance arrangements needed for
carriage on 747 lower deck.
| |
|
|
|
|

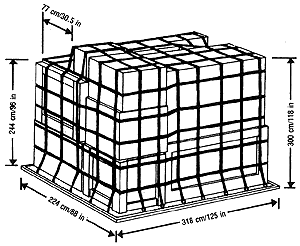

| ID Code |
P6P, PMC (Main Deck) |
| U.S. Domestic Code |
M-1 (Main Deck) |
| Aircraft types and Main or Lower
deck |
747 Freighter Main Deck
* |
| Rate Class |
2H |
| Internal Volume |
|
| Limiting Internal
Dimensions |
|
| Maximum Gross Weight |
6800 kg (15000 lb) |
| Tare Weight (incl. net) |
110kg (242lb) |
| *Contour applies to 747F side-door
loader. On 747F nose-door loader max. height is 224cm/96in.
| |
|
|
|
|

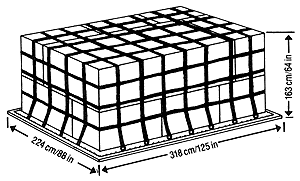

| ID Code |
P1P, PAG, PAP, PAJ, P1G (Lower
Deck) |
| U.S. Domestic Code |
LD-7 |
| Aircraft types and Main or Lower
deck |
All 747's & 767 *, A330 Lower
Deck |
| Rate Class |
5 |
| Internal Volume |
|
| Limiting Internal
Dimensions |
|
| Maximum Gross Weight |
4626 kg (10200 lb) |
| Tare Weight (incl. net) |
110kg (242lb) |
| *This unit may also be loaded on the
main deck of 747F. Max. gross weight is then 6800 kg/15000 lb.
On 767, max. gross weight is 5035 kg/11100 lb.
| |
|
|
|
|
| ID Code |
P1P, PAG, PAP, PAJ, P1G (Main
Deck) |
| U.S. Domestic Code |
M-1 |
| Aircraft types and Main or Lower
deck |
747 Freighter - side door loading
Main Deck * |
| Rate Class |
2C |
| Internal Volume |
|
| Limiting Internal
Dimensions |
|
| Maximum Gross Weight |
6800 kg (15000 lb) |
| Tare Weight (incl. net) |
110kg (242lb) |
| ** Contour applies to 747F side-door
loader. On 747F nose-door loader max. height is 224cm/96in.
| |
|
|
|
|
| ID Code |
P1P, PAG, PAP, PAJ, P1G (Main
Deck) |
| U.S. Domestic Code |
M-1 |
| Aircraft types and Main or Lower
deck |
747 Freighter - side door loading
Main Deck * |
| Rate Class |
2C |
| Internal Volume |
|
| Limiting Internal
Dimensions |
|
| Maximum Gross Weight |
6800 kg (15000 lb) |
| Tare Weight (incl. net) |
110kg (242lb) |
| ** Contour applies to 747F side-door
loader. On 747F nose-door loader max. height is 224cm/96in.
| |
|
|
|
|

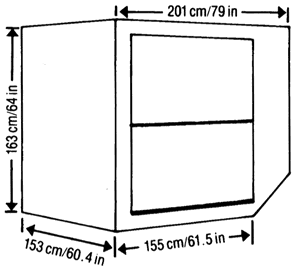

| ID Code |
AVE, AKE |
| U.S. Domestic Code |
LD-3 |
| Aircraft types and Main or Lower
deck |
All 747's & 767, A330 Lower
Deck |
| Rate Class |
8 |
| Internal Volume |
4.3 m³ (153 cu ft) |
| Limiting Internal
Dimensions |
140 x 147 x 152 cm (55 x 58 x 60
in) |
| Maximum Gross Weight |
1587 kg (3500 lb) |
| Tare Weight (incl. net) |
* |
| * Actual tare weights vary from 76
kg/165 lb to 81 kg/178 lb depending on manufacturer's models.
| |
|
|
|
|

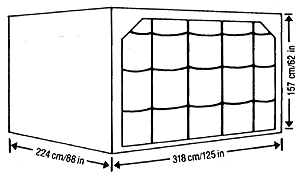

| ID Code |
AA2, AAP |
| U.S. Domestic Code |
LD-9 |
| Aircraft types and Main or Lower
deck |
All 747's & 767*, A330 Lower
Deck |
| Rate Class |
5 |
| Internal Volume |
10.6 m³ (374 cu ft) |
| Limiting Internal
Dimensions |
208 x 302 x 152 cm (82 x 119 x 60
in) |
| Maximum Gross Weight |
4626 kg (10200 lb) * |
| Tare Weight (incl. net) |
+ |
* This unit may also be loaded on the
main deck of 747F. Max. gross weight is then 6800 kg/15000 lb.
On 767, max. gross weight is 5100 kg/11243 lb.
+ Actual
tare weights vary from 200 kg/441 lb to 272 kg/600 lb
depending on manufacturer's models.
| |
|
|
|
|

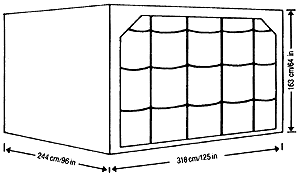

| ID Code |
AMP + |
| U.S. Domestic Code |
|
| Aircraft types and Main or Lower
deck |
All 747's & 767*, A330 Lower
Deck |
| Rate Class |
2BG |
| Internal Volume |
11.4 m³ (403 cu ft) |
| Limiting Internal
Dimensions |
229 x 302 x 152 cm (90 x 119 x 60
in) |
| Maximum Gross Weight |
5030 kg (10200 lb) * |
| Tare Weight (incl. net) |
266 kg (587 lb) |
* This unit may also be loaded on the
main deck of 747F. Max. gross weight is then 6800 kg/15000 lb.
On 767, max. gross weight is 5100 kg/11243 lb.
+ Advance
arrangements needed for carriage on 747 lower deck.
| |
|
|
|
|

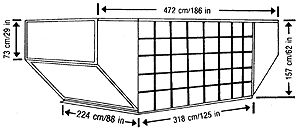

| ID Code |
AAU |
| U.S. Domestic Code |
LD-29 |
| Aircraft types and Main or Lower
deck |
All 747's |
| Rate Class |
5W |
| Internal Volume |
14.5 m³ (511 cu ft) |
| Limiting Internal
Dimensions |
208 x 302 x 152 cm (82 x 119 x 60
in) |
| Maximum Gross Weight |
4626 kg (10200 lb) |
| Tare Weight (incl. net) |
260 kg (573
lb) | |
|
| |
